Positive Displacement Flow Meter Accuracy Explained
A positive displacement flow meter is typically accurate to plus or minus 0.2 percent of reading. The words “of reading” matter more than the number, and this guide explains why, what limits accuracy in service, and how to judge whether a PD meter suits your fluid.
Percentage of reading and percentage of full scale.
Percentage of reading means the error is proportional to the flow actually passing, so it stays constant in relative terms. Percentage of full scale is a fixed band tied to the top of the range, so the relative error grows as flow falls.
Positive displacement flow meter accuracy is almost always quoted on the percentage-of-reading basis, and that single word changes what the number is worth. Two meters can both claim “0.5 percent accuracy” and behave completely differently, because the basis of the specification decides which one you can trust at part load.
| Flow as a share of full scale | Rated ±0.2% of reading | Rated ±0.5% of full scale |
|---|---|---|
| 100 percent | ±0.2% | ±0.5% |
| 50 percent | ±0.2% | ±1.0% |
| 20 percent | ±0.2% | ±2.5% |
| 10 percent | ±0.2% | ±5.0% |
Error expressed against the actual reading, not against full scale.
At a tenth of full scale the percentage-of-reading device is twenty-five times more accurate in the terms that matter to a batch total. This is why positive displacement flow meter accuracy remains the benchmark for fuel, lubricant and chemical dosing long after other technologies became cheaper.
Why positive displacement flow meter accuracy is quoted as percentage of reading
The International Society of Automation groups flow meters by whether they infer flow or displace it, and the distinction explains the accuracy basis. Most flow meters infer flow. A magnetic meter measures velocity and multiplies by bore area. A differential pressure meter measures a pressure drop and takes a square root. Both depend on a well-developed flow profile, which is why they need straight pipe upstream and why their error grows as conditions drift from the calibration.
A positive displacement meter does not infer anything. It traps a known volume of liquid in a measuring chamber and counts how many times that chamber fills and empties. The result is a direct count of discrete volumes.
No straight run needed
Flow profile is irrelevant to a chamber that fills completely, so the meter can sit immediately downstream of an elbow, valve or pump.
No conductivity requirement
Unlike a magmeter, a PD meter does not care whether the liquid conducts. Hydrocarbons, oils, solvents and resins are all measurable.
Accuracy improves with viscosity
Thicker fluids leak past the measuring elements far less readily, which is the opposite of how turbine and DP meters behave.
Slip is what actually caps accuracy.
Positive displacement flow meter accuracy is ultimately limited by one mechanism. The measuring elements run at close clearances rather than sealed contact. A small amount of liquid escapes past them without being counted. That leakage is called slip, and it is the dominant source of error in a healthy meter.
Slip rises when the differential pressure across the meter rises, and it falls as the fluid becomes more viscous, because a thicker fluid passes through a fine clearance far less readily.
| Condition | Effect on slip | Effect on accuracy |
|---|---|---|
| Higher viscosity | Falls | Improves, and low-flow turndown extends |
| Low viscosity, petrol or solvent | Rises | Degrades, particularly at low flow |
| Higher differential pressure | Rises | Degrades |
| Worn measuring elements | Rises | Degrades progressively, usually reading low |
| Higher temperature reducing viscosity | Rises | Degrades |
This is why PD meters dominate fuel oil, lubricant, syrup, resin and adhesive measurement, and why a PD meter quoted on water may perform less well than the same model quoted on oil.
Positive displacement flow meter accuracy and repeatability are not the same
Accuracy describes how close a reading is to the true value. Repeatability describes how closely the meter reproduces the same reading under the same conditions. A meter reading consistently two percent low is inaccurate but highly repeatable.
For batching and dosing, repeatability often matters more than absolute accuracy, because a consistent offset can be corrected with a calibration factor while scatter cannot. Where a meter is used for trade measurement, the metrological requirements are set internationally by OIML Recommendation R 117-1 on dynamic measuring systems for liquids other than water.
What degrades positive displacement flow meter accuracy in service
A datasheet figure is a laboratory result. Real positive displacement flow meter accuracy depends on filtration, air handling, wear and sizing, and five causes account for most of the drift reported in the field.
Periodic proving is the only reliable way to detect gradual wear before it costs money, because a worn meter under-reads quietly rather than failing outright.
The five usual causes
- No strainer, or the wrong mesh. A single hard particle can score the elements or seize the meter. A strainer is not optional.
- Entrained air. A PD meter counts volume and cannot tell liquid from gas. Air is measured as product.
- Wear. Clearances open with running hours, slip rises, and the meter progressively under-reads.
- Temperature and density shift. Volume must be corrected for density if mass is the quantity that matters.
- Overspeeding. Running above the rated flow accelerates wear sharply and can damage the elements.
Positive displacement meter designs compared
| Type | Principle | Best suited to | Watch for |
|---|---|---|---|
| Oval gear | Two meshing oval rotors displace a fixed volume per revolution | General industrial duty, oils, chemicals, viscous liquids | Sensitive to particulates; needs a strainer |
| Oscillating piston | A piston sweeps a measured chamber | Low flow rates and small line sizes where resolution matters | More moving parts in contact |
| Nutating disc | A disc wobbles in a chamber, displacing a set volume | Water and low-viscosity service at moderate accuracy | Lower accuracy than oval gear |
| Helical rotor | Intermeshing helical screws | High viscosity and higher flow rates | Higher capital cost |
Small line sizes, skids and OEM equipment.
Positive displacement flow meter accuracy is one of the few specifications that holds as line size shrinks. A magnetic meter needs enough velocity to induce a usable signal, and a turbine meter needs a developed profile and a bearing that tolerates the speed. A displacement chamber has neither constraint, so the accuracy specification holds at DN10 much as it does at DN100.
Combined with the absence of any straight run requirement, that makes PD meters the usual answer for machine builders, dosing skids and panel installations where there is no room for five pipe diameters either side of the instrument.
Choosing the output
- Pulse. The most robust choice for totalising. Each pulse represents a known volume, so no scaling error accumulates.
- 4 to 20 mA. Used where a controller needs a live rate signal rather than a total.
- Modbus. Suits skid and panel builds where rate, total and diagnostics travel on one pair.
When a PD meter is the wrong choice.
| Condition | Why PD struggles | Better option |
|---|---|---|
| Slurries, solids or abrasives | Close clearances wear or seize | Electromagnetic flow meter |
| Pressure loss must be minimal | PD meters impose a real, permanent pressure drop | Ultrasonic flow meter |
| Mass flow is the required quantity | PD measures volume; density correction is inferred | Coriolis mass flow meter |
| Gas or steam | The liquid displacement principle does not apply | Thermal mass or vortex |
| Very large line sizes | Cost and physical size scale poorly | Electromagnetic or ultrasonic |
Our guide to flow meter types and selection sets these technologies against fluid, accuracy and installed cost across the full range.

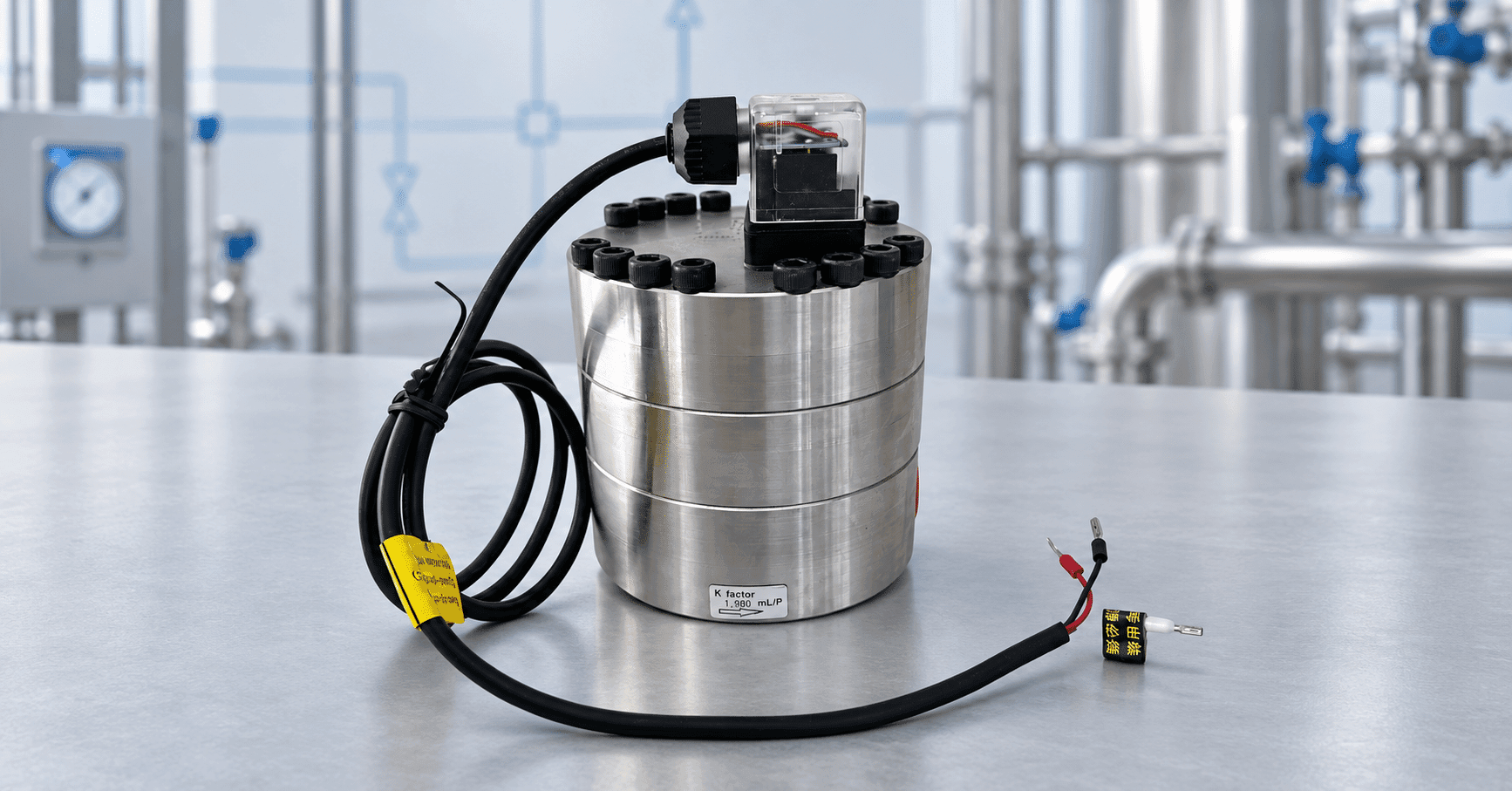

Dimens positive displacement flow meter.
| Accuracy | ±0.2 percent of reading |
|---|---|
| Line size | DN4 to DN200 |
| Flow range | 0.5 to 5,000 L per min |
| Maximum pressure | 25 bar |
| Temperature range | -40 °C to +200 °C |
| Output signal | Pulse, 4 to 20 mA, Modbus |
| Power supply | 24 V DC or battery |
Full details are on the positive displacement flow meter product page. The positive displacement flow meter accuracy figure above is the reference-condition value. Viscosity limits, wetted materials and protection class are specified per application, so send us the fluid and we will confirm them against your duty.
Common questions on positive displacement flow meter accuracy
How accurate is a positive displacement flow meter?
Typically plus or minus 0.2 percent of reading. Because the specification is a percentage of reading rather than of full scale, the absolute error falls as flow falls, so the meter holds useful accuracy across a wide turndown.
Does viscosity affect PD meter accuracy?
Yes, and it improves it. Higher viscosity reduces slip past the measuring elements, which is the main source of error. This is the opposite of turbine and differential pressure meters.
Do PD meters need straight pipe runs?
No. The meter counts discrete trapped volumes rather than measuring velocity, so flow profile does not affect the reading. That is a significant advantage in compact and skid-mounted equipment.
Why is my PD meter under-reading?
The usual cause is increased slip. Check for worn elements, a fluid less viscous than the one the meter was sized for, higher than expected differential pressure, or entrained air being counted as product.
Can a PD meter measure water?
Yes, though water sits at the low-viscosity end where slip is highest. Nutating disc designs are common in water service. For dirty water or any liquid carrying solids, an electromagnetic meter is more durable.
What size PD meter do I need?
Size on the normal operating flow, not the maximum the pump can deliver. Send the minimum, normal and maximum flow rates with the fluid and its viscosity at operating temperature.
Need the achievable accuracy confirmed for your fluid?
Accuracy on a datasheet is a laboratory figure. Send us the fluid, its viscosity at operating temperature, the flow range and the line size, and our engineers will confirm what the meter will deliver in service before you order.
